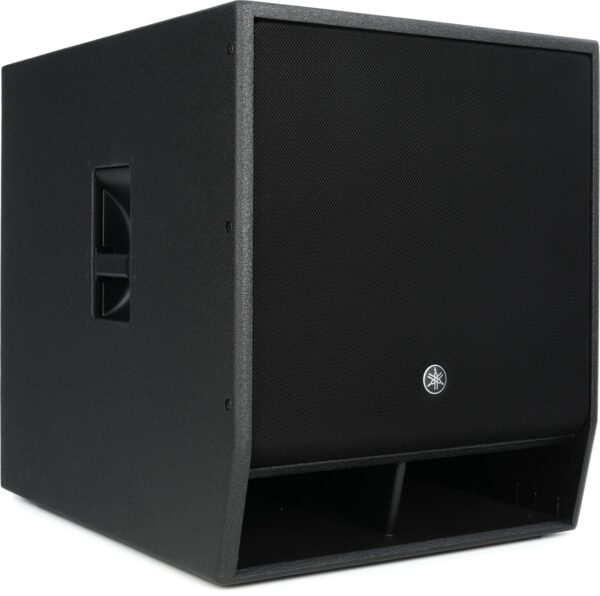

Yamaha CXS18XLF Passive Subwoofer

74,950.00

Description

Custom-designed transducer

The Yamaha CXS18XLF is loaded with a great-sounding, custom-designed transducer. Its durable cast-aluminum frame and 4-inch voice coil deliver jaw-dropping bass response, even at cranked volumes. Adding a CXS18XLF can extend your system’s low-frequency performance down to a startling 29Hz, for a throbbing low-end thump that’s sure to make an impression.

Features

Yamaha CXS18XLF Features:

  • Passive subwoofer with 18″ LF driver
  • A must-have for completing your full-range CZR system
  • 29Hz–150Hz frequency range with 133dB SPL
  • Great-sounding, custom-designed transducer
  • Compatible with Yamaha PX Series amplifier processor tuning settings (amplifier sold separately)
  • Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Specifications

  • Powered: No
  • LF Driver Size: 18″ Subwoofer, 4″ Voice Coil, Ferrite Magnet
  • Impedance: 8 ohms
  • Power Rating: 1000W Program
  • Total Power: 2000W Peak
  • Inputs: 2 x SpeakON (parallel dual pole)
  • Outputs: 1 x SpeakON (full range/cardioid rear)
  • Frequency Range: 32Hz-3kHz (passive), 32Hz-150Hz (with DSP processing)
  • Maximum Peak SPL: 133dB SPL
  • Mounting Options: Floor
  • Enclosure Material: Plywood Cabinet with Polyurea Coating, Black Finish
  • Height: 25.9″ (with feet)
  • Width: 21.6″
  • Depth: 28.4″
  • Weight: 96.1 lbs.
