Yamaha CZR12 Passive Speaker

64,950.00

Description

Killer Sound, Top Performance, and Easy System Integration

The Yamaha CZR12 offers superb clarity and best-in-class SPL performance. This 2-way bi-ampable PA speaker boasts 1,600-watt power handling, a 38Hz-20kHz frequency range, and can tackle any application you throw at it. Great-sounding, custom-designed transducers deliver vivid, soaring highs and rafter-shaking low end. As a passive PA speaker, the CZR12 integrates with any configuration, thanks to its rotatable horn. It can also operate effectively as a stage monitor. This speaker can take full advantage of processor tuning settings when used with a Yamaha PX Series amplifier. The CZR12 employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating.

Features

Yamaha CZR12 Features:

  • 2-way passive loudspeaker with 2″ HF and 12″ LF drivers
  • Boasts 1,600-watt power handling and bi-amp capabilities
  • 38Hz-20kHz frequency range with 129dB SPL
  • Great-sounding, custom-designed transducers
  • Rotatable horn allows vertical or horizontal mounting
  • 90×60° dispersion from a vertical position
  • Constant directivity horn supplies smooth, level coverage without roll-off
  • Compatible with Yamaha PX Series amplifier processor tuning settings (amplifier sold separately)
  • Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Specifications

  • Powered: No
  • Power Configuration: 2-way Passive/Bi-amped
  • LF Driver Size: 12″ Woofer, 3″ Voice Coil with Neodymium Magnet
  • HF Driver Size: 2″ HF Compression Driver
  • Impedance: 8 ohms
  • Power Rating: 800W Program
  • Total Power: 1600W Peak

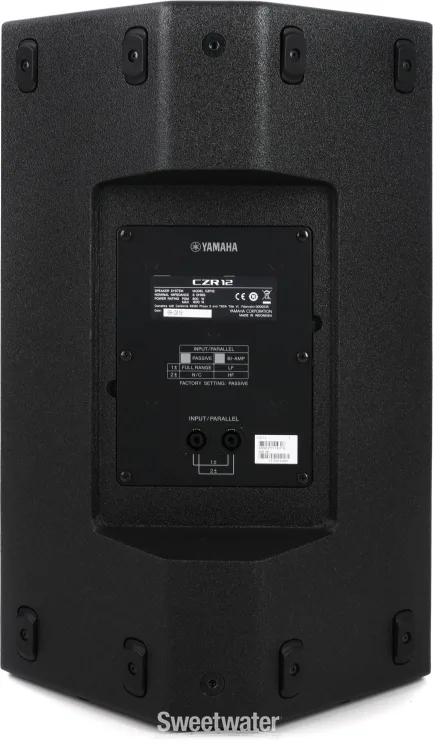

  • Inputs: 2 x SpeakON (parallel)
  • Frequency Range: 43Hz-20kHz (passive), 42Hz-20kHz (with DSP processing)
  • Crossover Frequency: 2.0kHz
  • Maximum Peak SPL: 129 dB SPL @ 1m
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees
  • Enclosure Material: Plywood Cabinet with Polyurea Coating
  • Mounting Options: Pole: 2 x 1.37″ (35mm); Fly: 12 x M10; Wedge
  • Height: 25.4″ (with feet)
  • Width: 16.1″
  • Depth: 15.5″
  • Weight: 39.7 lbs.
