The white Yamaha DXS15XLF-DW is a Dante-equipped, powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 15″ woofer to provide a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.

The on-board D-XSUB LF 96 kHz DSP processor provides total bass management. The Normal mode is ideal for a balanced low-frequency response, while Boost mode provides a tighter and more focused bass with some extra punch. Xtended LF mode drops the low-end frequencies down even further for large bottom end. If using two or more subwoofers, the selection of Cardioid mode can effectively reduce stage volume, while increasing low-end output directed at the audience.

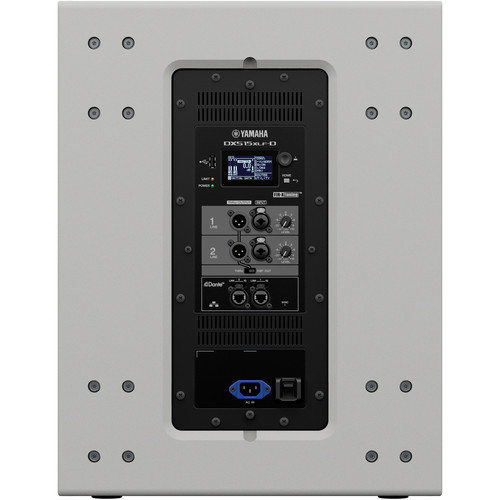

The rear panel offers two combo XLR-1/4″ inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The DXS15XLF-DW is equipped with an additional panel with two etherCON connectors (2-in/2-out) for interfacing with other Dante-compatible equipment such as other speakers and Yamaha’s CL/QL/TF digital mixing consoles. The Yamaha DXS15XLF-DW ships with a standard IEC power cord.
