Yamaha DXS15XLF-D Powered Subwoofer with Dante

129,950.00

Description

Power, Performance, and Easy System Integration

The Yamaha DXS15XLF-D offers thunderous low end, superb clarity, and best-in-class SPL performance. This powered bass-reflex subwoofer boasts a high-power 1,600-watt Class D amplifier and a 33Hz–150Hz frequency range, and it can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. Built-in Dante capabilities enable smart system integration with Yamaha consoles and other Dante devices. This sub employs a lightweight yet durable plywood cabinet with a premium-grade polyurea coating. The DXS15XLF-D is a must-have for completing your full-range DZR system.

Features

Yamaha DXS15XLF-D Powered Subwoofer Features:

  • Powered subwoofer with 15″ LF driver
  • A must-have for completing your full-range DZR system
  • Boasts a high-power 1,600-watt Class D amplifier and 33Hz–150Hz frequency range
  • D-XSUB LF processing gives you total command of your low end with Normal, Boost, and Xtended LF modes
  • Cardioid mode decreases stage volume while increasing the low-frequency output directed toward your audience
  • Optimized factory presets and intuitive LCD screen make operation easy
  • Great-sounding, custom-designed transducer
  • Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices
  • Dual damper ensures extraordinary low-frequency linearity during high-output situations
  • Lightweight yet durable plywood cabinet with a premium-grade polyurea coating

Specifications

  • Powered: Yes
  • LF Driver Size: 15″ Cone, 4″ Voice Coil, Ferrite Magnet
  • Power Rating: 1230W Continuous
  • Total Power: 1600W Peak
  • Inputs:  2 x XLR-1/4″ combo
  • Outputs: 2 x XLR (thru/output)

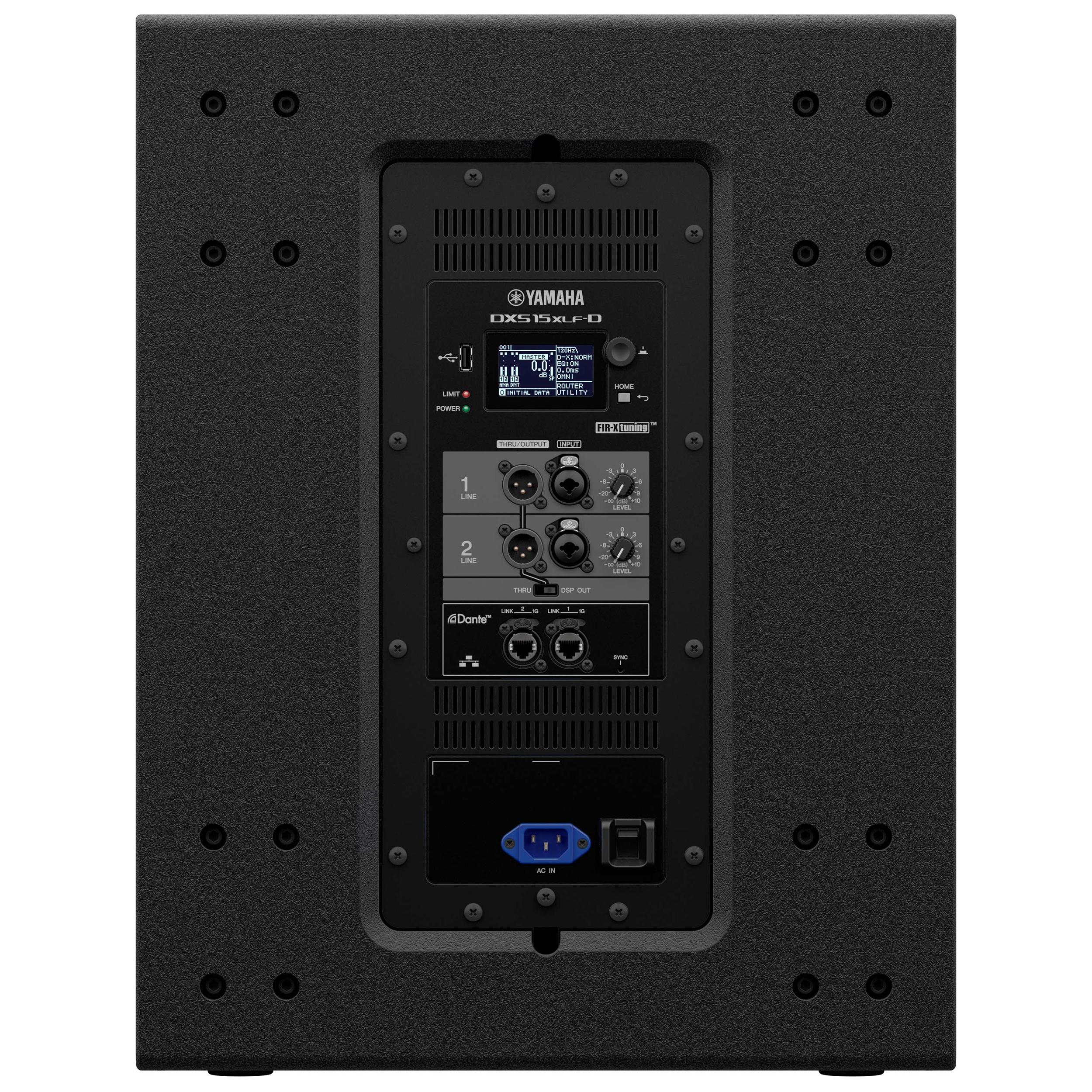

  • Other I/O: 1 x USB Type A, 2 x EtherCON (Dante)
  • Frequency Range: 33Hz-150hz (-10 dB)
  • Maximum Peak SPL: 136dB SPL @ 1m
  • Signal Processing: EQ, Delay, Cardioid Mode, D-XSUB Processing
  • Mounting Options: Floor, Pole Mount with 1.37″ (35mm) and M20 sockets
  • Power Source: Standard IEC AC cable
  • Enclosure Material: Plywood Cabinet with Polyurea Coating, Black Finish
  • Height: 23.1″
  • Width: 17.7″
  • Depth: 23.6″
  • Weight: 88.2 lbs.
