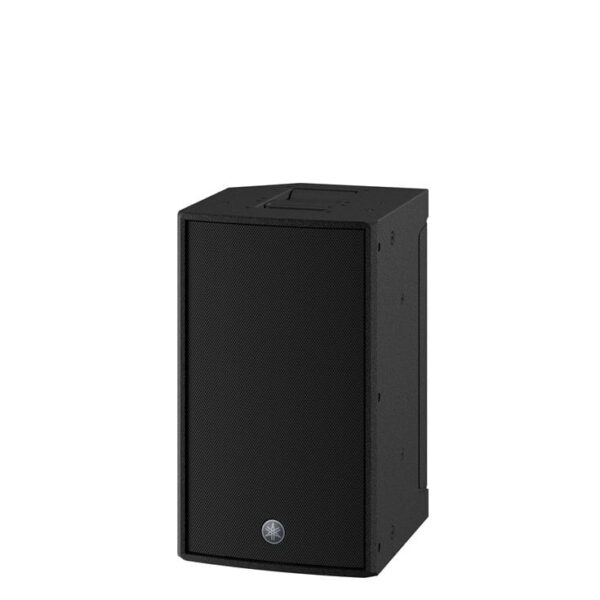

Yamaha DZR10-D Powered Speaker with Dante

99,950.00

Description

Custom-designed transducers

The Yamaha DZR10-D is loaded with great-sounding, custom-designed transducers. Its high-frequency transducer includes a 2-inch voice coil and 1-inch throat compression driver, a titanium diaphragm, and neodymium magnet housed in a heat-resistant aluminum-cast frame. Its low-frequency transducer uses a large 3-inch voice coil, cast-aluminum frame, and powerful, yet lightweight, neodymium magnet to handle the chest-thumping low end that the DZR10-D delivers. The DZR10-D isn’t just all about power, however. Its low-end response is tightly controlled, especially in the mid-bass and vocal range, assuring crystal-clear sound reproduction — even at cranked volumes.

Features

Yamaha DZR10-D Features:

  • 2-way powered loudspeaker with 2″ HF and 10″ LF drivers
  • Boasts a high-power 2,000-watt Class D amplifier and 44Hz–20kHz frequency range
  • Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
  • D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
  • FOH/MAIN and MONITOR modes allow you to fine-tune your sound based on your application
  • DSP protection safeguards your power supply, power amplifiers, and transducers against damage
  • Optimized factory presets and intuitive LCD screen make operation easy
  • Great-sounding, custom-designed transducers
  • Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices
  • Rotatable horn allows vertical or horizontal mounting
  • 90×60° dispersion from a vertical position
  • Constant directivity horn supplies smooth, level coverage without roll-off
  • Universal switching mode power supply offers maximum power, along with stable, worry-free operation
  • Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Specifications

  • Powered: Yes
  • Power Configuration: Bi-amped
  • Channels: 2
  • LF Driver Size: 10″ cone
  • HF Driver Size: 1″ throat compression driver
  • LF Driver Power Amp: 1000W Class D Peak
  • HF Driver Power Amp: 1000W Class D Peak
  • Total Power: 2000W Peak
  • Inputs: 2 x XLR-1/4″ combo
  • Outputs: 2 x XLR
  • USB: 1 x Type A
  • Other I/O: 2 x EtherCON (Dante)
  • Frequency Range: 44Hz-20khz (-10 dB)
  • Crossover Frequency: 1800 Hz
  • Maximum Peak SPL: 137 dB SPL @ 1m
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees
  • Signal Processing: EQ, Delay
  • Enclosure Material: Plywood
  • Mounting Options: Pole Mount with 1.37″ socket, Floor Wedge, 8 x M10 Fly Points, 2 x M8 Fly Points
  • Power Source: Standard IEC AC cable
  • Height: 21.1″
  • Width: 12.4″
  • Depth: 13.6″
  • Weight: 39.5 lbs.
