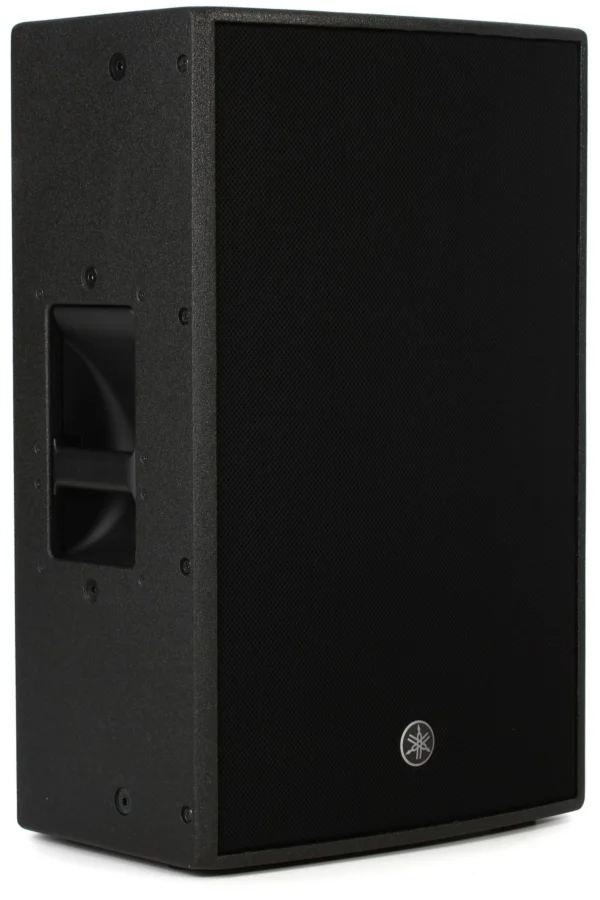

Yamaha DZR12 Powered Speaker

99,950.00

Description

Power, Performance, and Easy System Integration

The Yamaha DZR12 offers superb clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker boasts a high-power 2,000-watt Class D amplifier, a 39Hz–20kHz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. As a powered PA speaker, the DZR12 integrates with any configuration. It can also operate effectively as a stage monitor. The DZR12 employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating.

Features

amaha DZR12 Features:

  • 2-way powered loudspeaker with 2″ HF and 12″ LF drivers
  • Boasts a high-power 2,000-watt Class D amplifier and 39Hz–20kHz frequency range
  • Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
  • D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
  • FOH/MAIN and MONITOR modes allow you to fine-tune your sound based on your application
  • DSP protection safeguards your power supply, power amplifiers, and transducers against damage
  • Optimized factory presets and intuitive LCD screen make operation easy
  • Great-sounding, custom-designed transducers
  • Rotatable horn allows vertical or horizontal mounting
  • 90×60° dispersion from a vertical position
  • Constant directivity horn supplies smooth, level coverage without roll-off
  • Universal switching mode power supply offers maximum power, along with stable, worry-free operation
  • Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Specifications

  • Powered: Yes
  • Power Configuration: Bi-amped Class D
  • Channels: 2
  • LF Driver Size: 12″ Cone, 3″ Voice Coil with Neodymium Magnet
  • HF Driver Size: 2″ HF Compression Driver, 1″ Throat
  • LF Driver Power Amp: 850W Continuous
  • HF Driver Power Amp: 100W Continuous
  • Total Power: 2000W Dynamic Peak

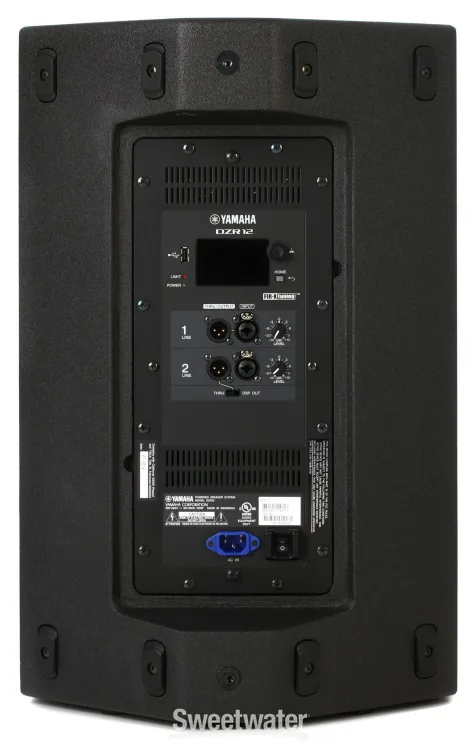

  • Inputs: 2 x XLR-1/4″ combo (line in)
  • Outputs: 2 x XLR (thru/output)
  • USB: 1 x Type A
  • Frequency Range: 39Hz-20khz (-10 dB)
  • Crossover Frequency: 1.8kHz
  • Maximum Peak SPL: 139 dB SPL @ 1m
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees
  • Signal Processing: PEQ, Delay, Routing, 8 User Presets
  • Enclosure Material: Plywood Cabinet with Polyurea Coating
  • Mounting Options: Pole: 2 x 1.37″ (35mm) socket; Fly: 12 x M10; Floor Wedge
  • Power Source: Standard IEC AC cable
  • Height: 25.4″
  • Width: 16.1″
  • Depth: 15.5″
  • Weight: 47.2 lbs.
