SKU P13DZR315 Categories , Tags ,

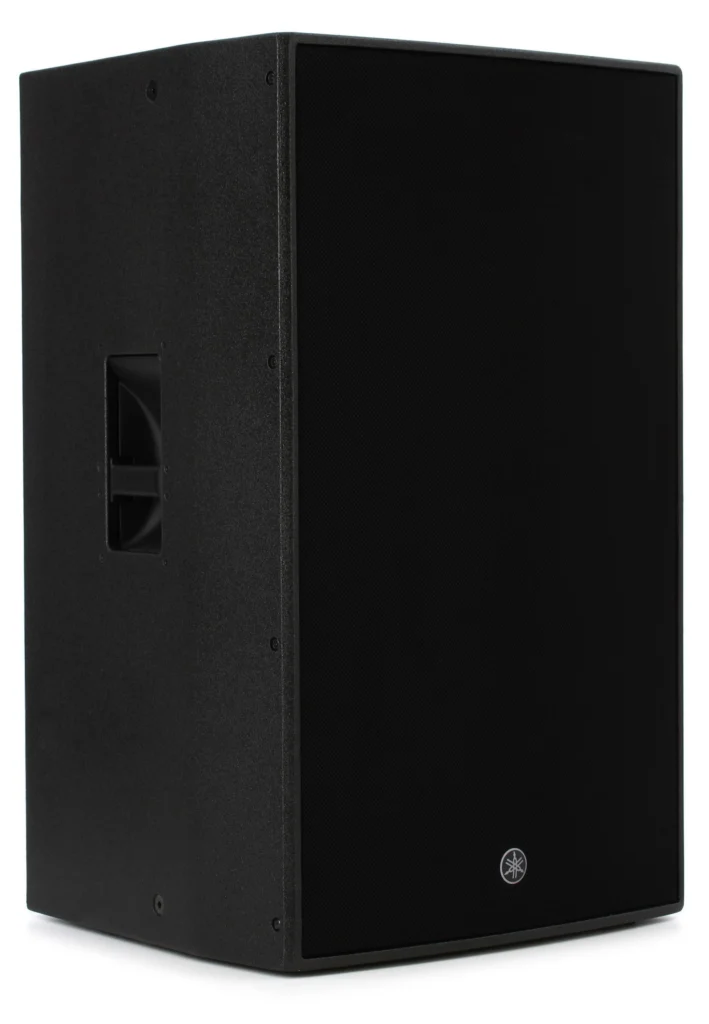

Yamaha DZR315 Powered Speaker

129,950.00

Description

Power, Performance, and Easy System Integration

The Yamaha DZR315 offers superb clarity and best-in-class SPL performance. This 3-way bi-amped PA speaker boasts a high-power 2,000-watt Class D amplifier, a 31Hz–20kHz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. As a powered PA speaker, the DZR315 integrates with any configuration. It can also operate effectively as a stage monitor. The DZR315 employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating.

Features

Yamaha DZR315 Features:

  • 3-way powered loudspeaker with 2″ HF, 8″ MF, and 15″ LF drivers
  • Boasts a high-power 2,000-watt Class D amplifier and 31Hz–20kHz frequency range
  • Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
  • D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
  • FOH/MAIN and MONITOR modes allow you to fine-tune your sound based on your application
  • DSP protection safeguards your power supply, power amplifiers, and transducers against damage
  • Optimized factory presets and intuitive LCD screen make operation easy
  • Great-sounding, custom-designed transducers
  • Universal switching mode power supply offers maximum power, along with stable, worry-free operation
  • Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating
  • Includes multiple integrated M10 rigging points for suspended applications

Specifications

  • Powered: Yes
  • Power Configuration: Bi-amped Class D
  • Channels: 2
  • LF Driver Size: 15″ cone
  • Mid Driver Size: 8″ cone
  • HF Driver Size: 1″ throat compression driver
  • LF Driver Power Amp: 850W Continuous
  • HF Driver Power Amp: 100W Continuous
  • Total Power: 2000W Dynamic Peak
  • Inputs: 2 x XLR-1/4″ combo
  • Outputs: 2 x XLR
  • USB: 1 x Type A
  • Frequency Range: 31Hz-20khz (-10 dB)
  • Crossover Frequency: 700Hz, 2500Hz
  • Maximum Peak SPL: 143dB SPL @ 1m
  • Horizontal Coverage Angle: 75 Degrees
  • Vertical Coverage Angle: 50 Degrees
  • Signal Processing: EQ, Delay
  • Enclosure Material: Plywood
  • Mounting Options: 16 x M10 Fly Points
  • Power Source: Standard IEC AC cable
  • Height: 35.3″
  • Width: 21.6″
  • Depth: 20.5″
  • Weight: 91.7 lbs.
