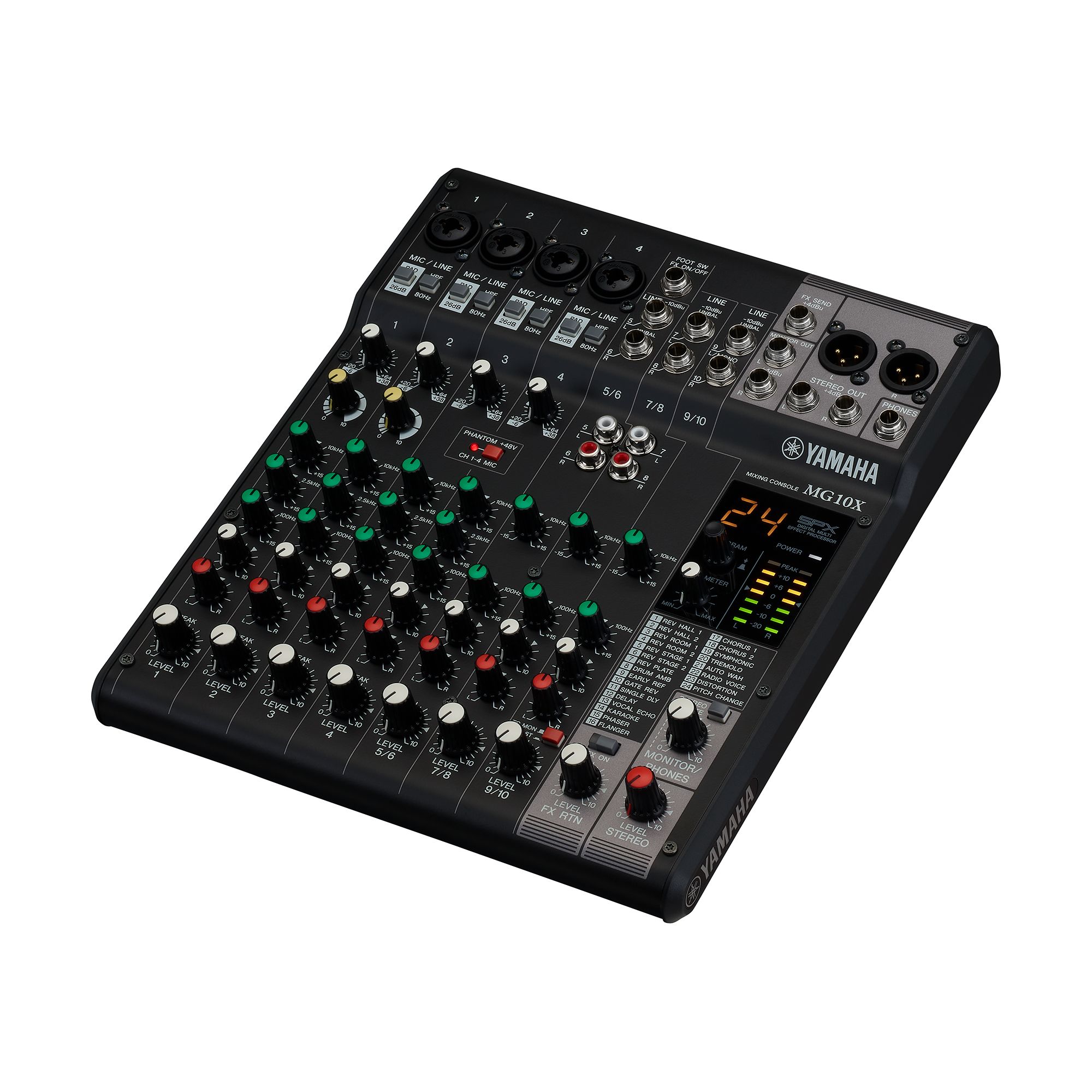

Yamaha MG10X CV 10-channel Stereo Mixer

A Powerful Stereo Mixer for the Stage and Studio

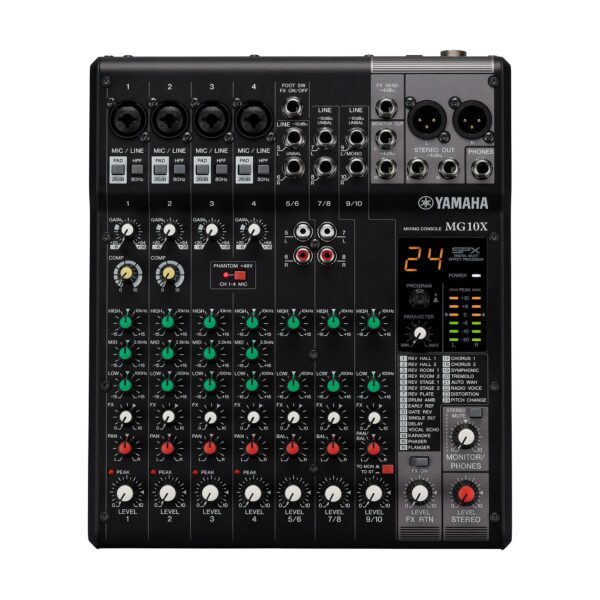

The MG10X CV delivers both of those features in spades, and it’s just the thing to streamline both your live and studio setups. This mixer boasts 10 versatile inputs, including XLR, 1/4-inch, phone/RCA type pin jack inputs for compatibility with a wide range of sources. Two XLR and phone outputs deliver your crystal-clear stereo sound, with the ability for near-endless tweaking via the 24 effect programs and two channels of single-knob compression. Above all, the Yamaha MG10X CV’s color-coded controls, lit on/off switches, and highly durable powder-coated steel chassis make this mixer a rock-solid, intuitive solution for your mixing needs!

	MG10X	MG10X
Outline
Mixing capability	On-board processors	SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)	SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O	Phantom power	+48 V	+48 V
Digital I/O	–	–
Input Channels	Mono[MIC/LINE]	4	4
Mono/Stereo[MIC/LINE]	–	–
Stereo[LINE]	3	3
Output Channels	STEREO OUT	2	2
MONITOR OUT	1	1
PHONES	1	1
AUX SEND	1	1
GROUP OUT	–	–
Bus	Stereo: 1, AUX[FX]: 1	Stereo: 1, AUX[FX]: 1
Input Channel Function	PAD	26 dB (Mono)	26 dB (Mono)
HPF	80 Hz, 12 dB/oct (Mono)	80 Hz, 12 dB/oct (Mono)
COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping	LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion	0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min	0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response	+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min	+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk	-83 dB	-83 dB
Power requirements	PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha	PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption	22.9 W	22.9 W
Dimensions	W	244 mm (9.6″)	244 mm (9.6″)
H	71 mm (2.8″)	71 mm (2.8″)
D	294 mm (11.6″)	294 mm (11.6″)
Net weight	2.1 kg (4.63 lbs.)	2.1 kg (4.63 lbs.)
Accessories	Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5	Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others	Operating Temperature: 0 to +40˚C	Operating Temperature: 0 to +40˚C

MG10X

Mixing capability

On-board processors

SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O

Phantom power

+48 V

Digital I/O

–

Input Channels

Mono[MIC/LINE]

Mono/Stereo[MIC/LINE]

–

Stereo[LINE]

Output Channels

STEREO OUT

MONITOR OUT

PHONES

AUX SEND

GROUP OUT

–

Bus

Stereo: 1, AUX[FX]: 1

Input Channel Function

PAD

26 dB (Mono)

HPF

80 Hz, 12 dB/oct (Mono)

COMP

1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH

Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID

Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking

EQ LOW

Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED

LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter

2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total harmonic distortion

0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response

+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level

Equivalent input noise

-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise

-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)

Crosstalk

-83 dB

Power requirements

PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha

Power consumption

22.9 W

Dimensions

244 mm (9.6″)

71 mm (2.8″)

294 mm (11.6″)

Net weight

2.1 kg (4.63 lbs.)

Accessories

Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5

Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5

Others

Operating Temperature: 0 to +40˚C
